BTClock¶

A Bitcoin block-height-and-price companion device. Open hardware, open firmware, open data feeds. This site is the user-facing documentation for the BTClock v4 firmware (ESP-IDF v6.0); developer references live alongside the code in the Forgejo repository.

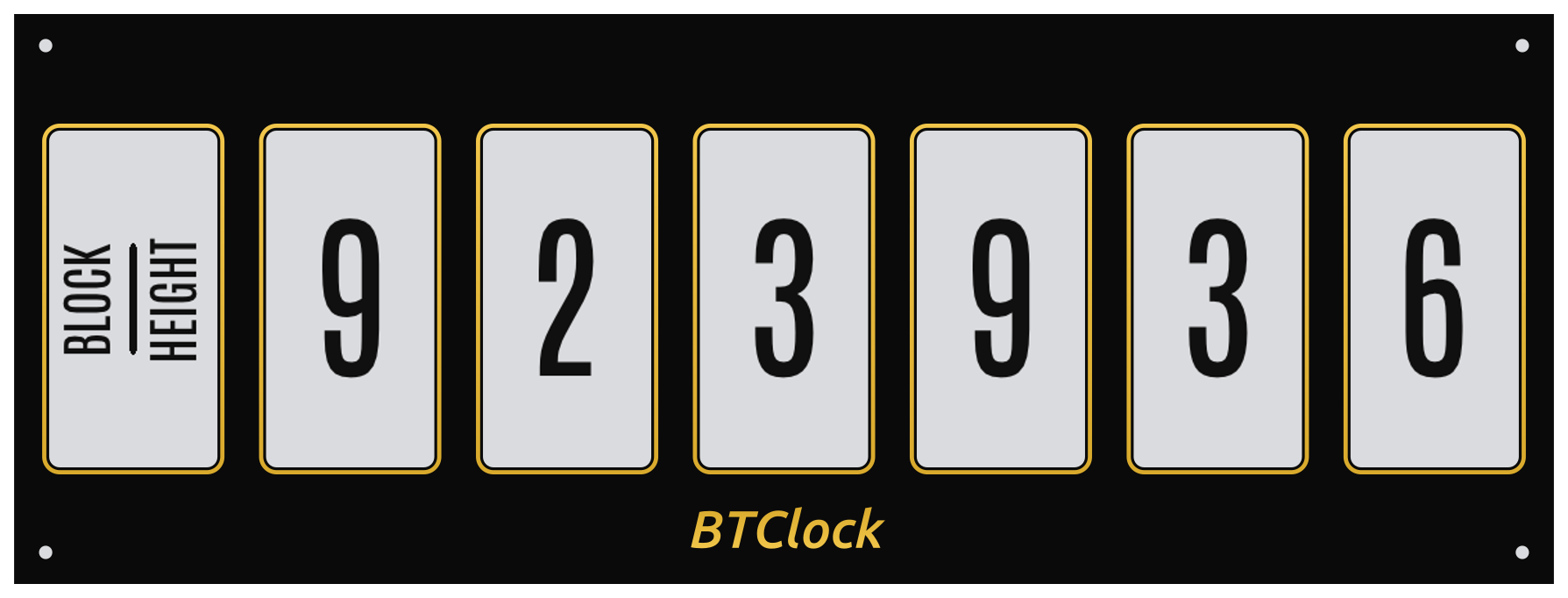

Block height screen

What you'll find here¶

Quickstart — get a powered-up BTClock onto Wi-Fi and rotating Bitcoin screens in about ten minutes. Covers Wi-Fi join, timezone, currency rotation, and the four-button on-device controls.
Handbook — every WebUI section, every screen, and every toggle, with side-by-side renders showing the impact of each setting.
Settings reference — exhaustive table of every persisted preference, its type, default, validation range, and which endpoint accepts it.
Architecture — task / data-flow / IPC overview for contributors who want to add a screen, port to new hardware, or modify a renderer.
Build from source — flashing, OTA, toolchain setup, and per-board sdkconfig fragments.
Project story — how the BTClock came to be, told by the project's original developer.

Other languages¶

The Quickstart is translated into Nederlands, Deutsch, and Español. On the live site, the language picker in the top-right switches the active locale. Pages without a translation fall back to the English version.

Hardware¶

The v4 firmware ships for three production boards:

Variant	MCU	Flash	PSRAM	Default panel	Notes
Rev A	ESP32-S3	4 MB	2 MB	2.13"	no frontlight, no BH1750 (Lolin S3 Mini)
Rev B	ESP32-S3	8 MB	2 MB	2.13"	BH1750 ambient sensor, frontlight
V8	ESP32-S3	16 MB	8 MB	2.13"	8 panels

The 2.9" GDEY029T94 panel is supported on every board via BTCLOCK_PANEL=2_9; the 7.5" GDEY075T7 is scaffolded but not yet brought up.

Source layout¶

The repo top-level groups responsibilities cleanly:

main/ — the firmware app: screens, screen-manager, button handlers, OTA, data ingest, provisioning UI.
components/ — reusable subsystems (fonts, EPD drivers, MCP23017, PCA9685, mining-pool clients, …).
data/ — the Svelte WebUI shipped on the device's LittleFS.
tools/ — host-side tooling (WASM doc renderer, mklittlefs wrapper, pool-logo converter, …).
docs/ — what you're reading.

Contributing¶

Issues and patches: file via Forgejo issues. Translation PRs are very welcome; the structure is documented in Build from source.
